Kubernetes

• Kubernetes is a deployment concept and should be modelled in your deployment model.
• Kubernetes should not appear on container views.

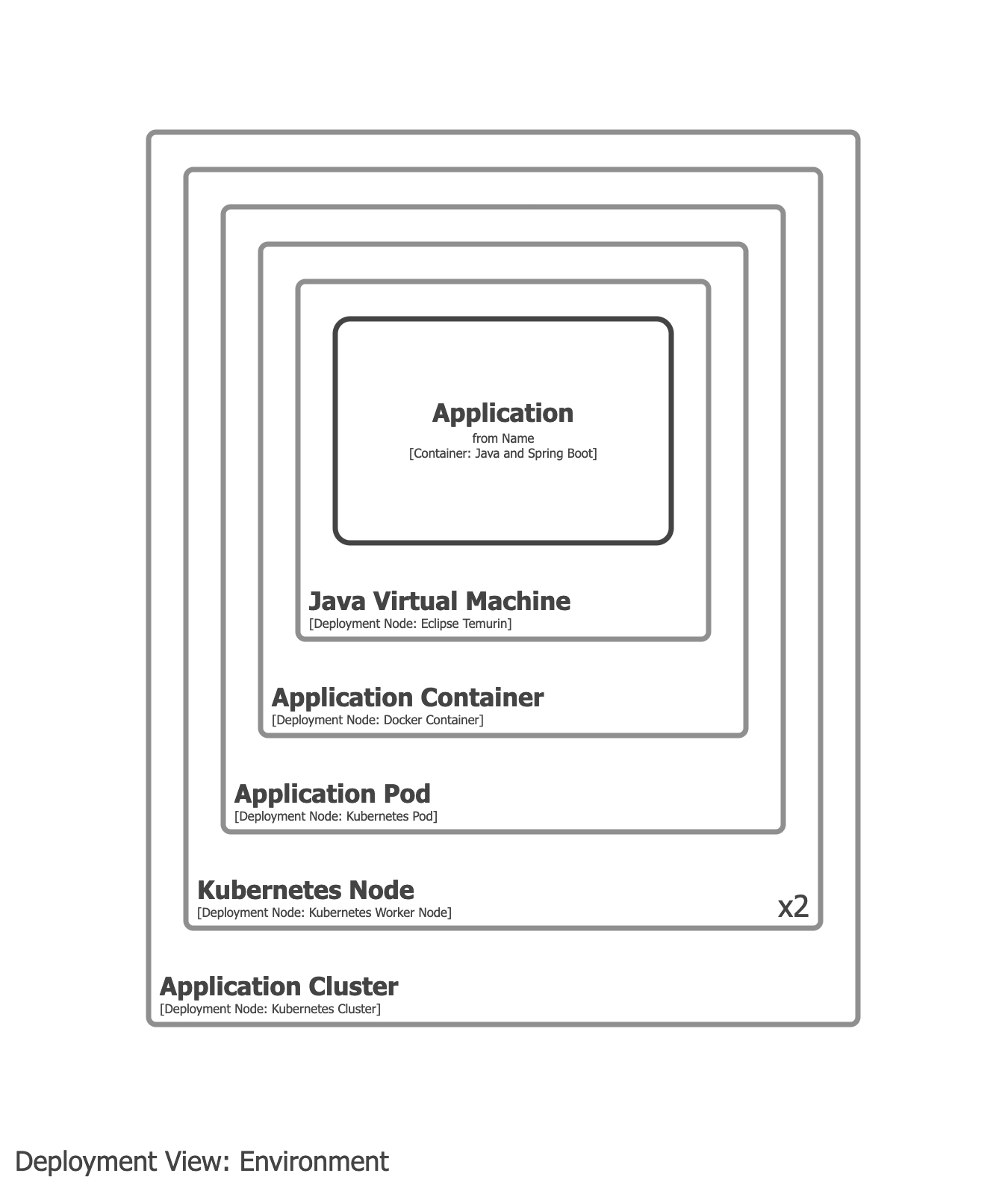

Example 1

Model the Kubernetes cluster, nodes, and pods as deployment nodes.

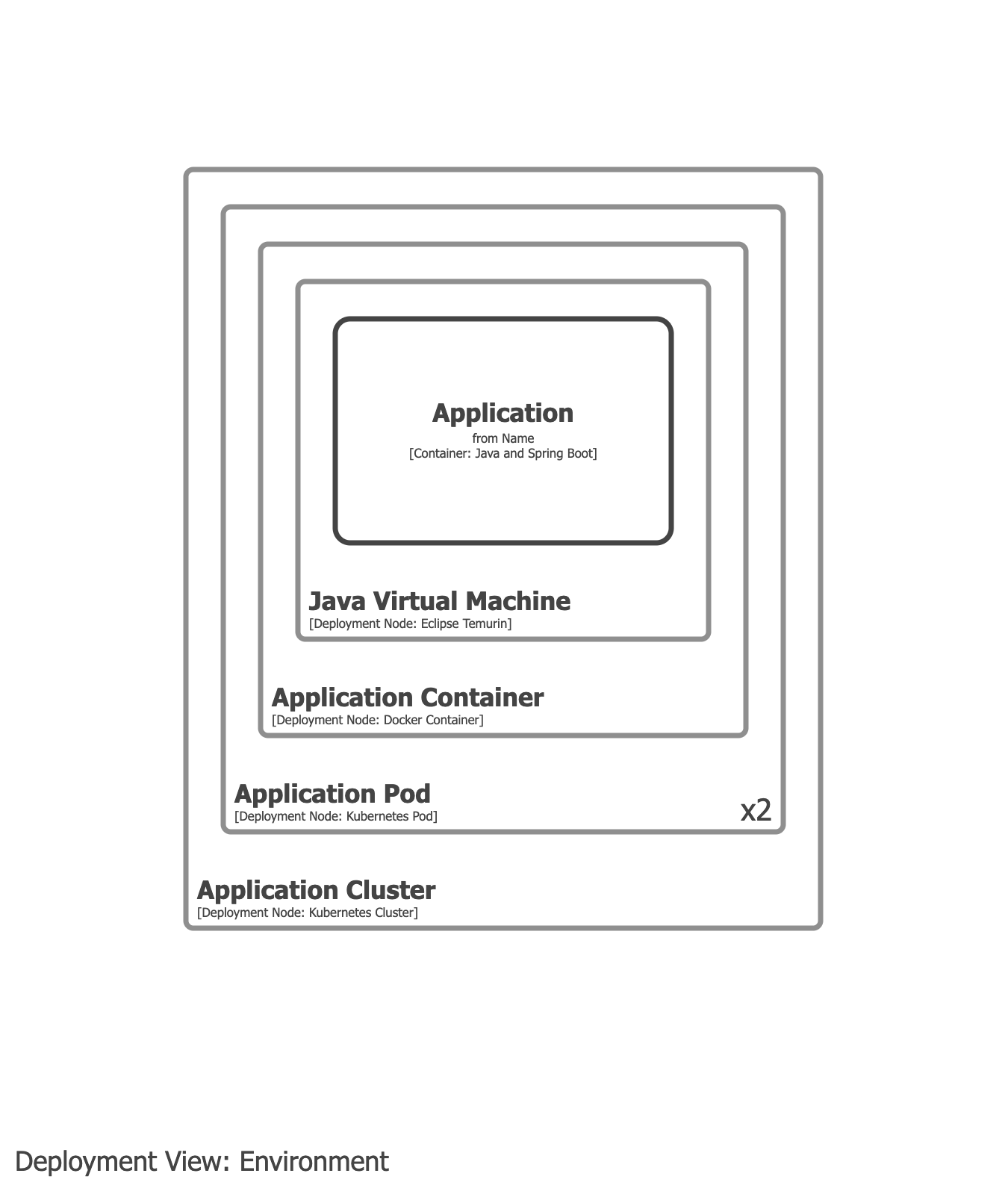

Example 2

As above, but excludes the nodes for a simpler diagram.
