Example

As an example, the following DSL can be used to create a software architecture model and an associated view that describes a user using a software system.

workspace {

    model {
        user = person "User"
        softwareSystem = softwareSystem "Software System"

        user -> softwareSystem "Uses"
    }

    views {
        systemContext softwareSystem {
            include *
            autolayout lr
        }
    }

}

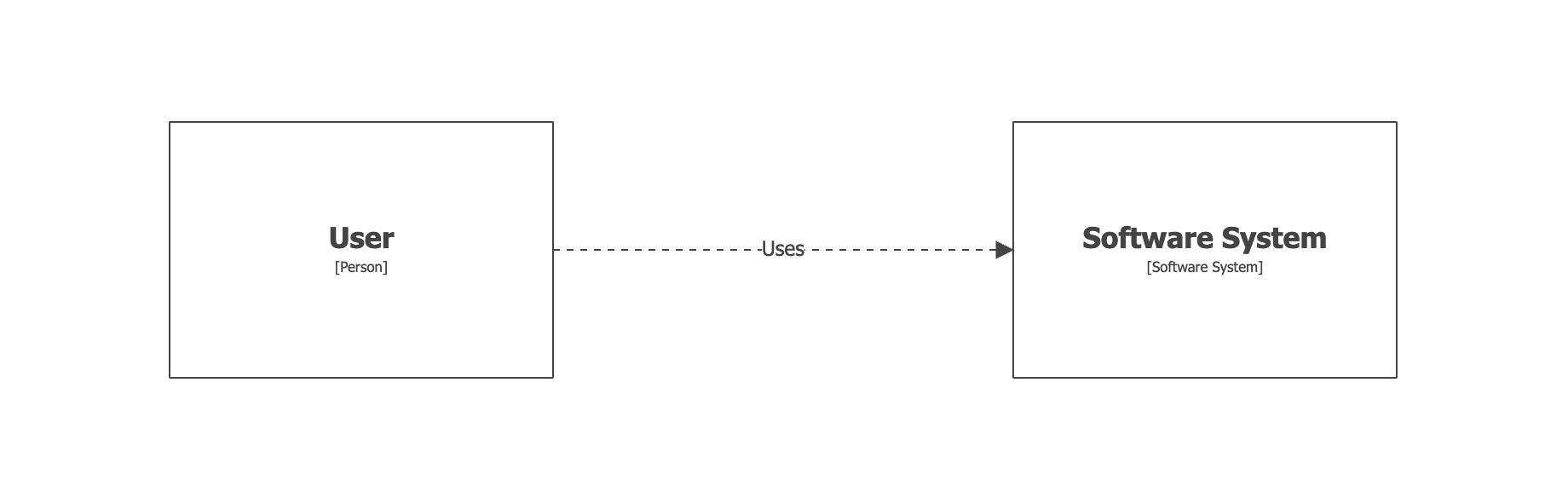

And the Structurizr browser-based renderer produces the following diagram.
