Authentication

There are three variants of the on-premises installation, each with different authentication methods:

• Form-based login, with a file-based user store
• Form-based login, with integration to your LDAP server
• Single sign-on with your Identity Provider via SAML 2.0

Local file

This variant is used by default, and configured to use a form-based login (username and password), with the set of users stored in a file called structurizr.users in the Structurizr data directory (passwords are hashed using bcrypt). A user with the username of structurizr and password of password is created by default. You can add, remove or modify users as needed. Each line in this file should be in the following format:

{username}={hashed password}

A simple utility page is provided to calculate a bcrypt hashed password at {structurizr.url}/bcrypt/{password} (e.g. http://localhost:8080/bcrypt/password).

It is also possible to configure a comma separated list of roles for every user, in a file called structurizr.roles, again in the Structurizr data directory. Each line in this file should be in the following format:

{username}={role1},{role2},{role3}

LDAP

A form-based login with integration to an LDAP server is supported, and this has been used successfully with FreeIPA and Microsoft Active Directory (via the LDAP binding). To configure LDAP integration:

• Add structurizr.authentication=ldap to your structurizr.properties file.
• Create a file named ldap.xml in your Structurizr data directory, based upon the following template. If you make any changes to this LDAP configuration file, you will need to restart the on-premises installation.

<beans:beans
xmlns="http://www.springframework.org/schema/security"
xmlns:beans="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="
http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
http://www.springframework.org/schema/security http://www.springframework.org/schema/security/spring-security.xsd
">

<!-- add your LDAP configuration here -->

</beans:beans>

The Spring - LDAP Authentication documentation explains how to configure LDAP integration, but some example configurations are as follows.

FreeIPA

The FreeIPA demo server can be useful to test LDAP integration.

<ldap-server url="ldap://ipa.demo1.freeipa.org:389/dc=demo1,dc=freeipa,dc=org" />
<authentication-manager>
<ldap-authentication-provider
        user-search-base="cn=users,cn=accounts"
        user-search-filter="(uid={0})"
        group-search-base="cn=groups,cn=compat"
        group-search-filter="(memberUid={1})"
        role-prefix="ROLE_">
</ldap-authentication-provider>
</authentication-manager>

Microsoft Active Directory

This configuration can be used as a starting point for integrating with Microsoft Active Directory. You will need to change the following values in the example below:

• DC=mycompany,DC=local (the search base x2)
• ldap://127.0.0.1:389 (your LDAP URL)
• MYCOMPANY\Administrator (your LDAP username)
• password (your LDAP password)

<beans:bean id="ldapAuthProvider" class="org.springframework.security.ldap.authentication.LdapAuthenticationProvider">
    <beans:constructor-arg>
        <beans:bean class="org.springframework.security.ldap.authentication.BindAuthenticator">
            <beans:constructor-arg ref="contextSource"/>
            <beans:property name="userSearch" ref="userSearch"/>
        </beans:bean>
    </beans:constructor-arg>
    <beans:constructor-arg>
        <beans:bean class="org.springframework.security.ldap.userdetails.DefaultLdapAuthoritiesPopulator">
            <beans:constructor-arg index="0" ref="contextSource"/>
            <beans:constructor-arg index="1" value="DC=mycompany,DC=local"/>
            <beans:property name="groupSearchFilter" value="(member={0})"/>
            <beans:property name="ignorePartialResultException" value="true"/>
            <beans:property name="searchSubtree" value="true"/>
        </beans:bean>
    </beans:constructor-arg>
</beans:bean>

<beans:bean id="userSearch" class="org.springframework.security.ldap.search.FilterBasedLdapUserSearch">
    <beans:constructor-arg index="0" value="DC=mycompany,DC=local"/>
    <beans:constructor-arg index="1" value="(sAMAccountName={0})"/>
    <beans:constructor-arg index="2" ref="contextSource" />
</beans:bean>

<beans:bean id="contextSource" class="org.springframework.security.ldap.DefaultSpringSecurityContextSource">
    <beans:constructor-arg value="ldap://127.0.0.1:389"/>
    <beans:property name="userDn" value="MYCOMPANY\Administrator"/>
    <beans:property name="password" value="password"/>
</beans:bean>

<authentication-manager>
    <authentication-provider ref="ldapAuthProvider" />
</authentication-manager>

SAML 2.0

Single sign-on is supported via SAML 2.0 integration with an Identity Provider. There are teams using this in conjunction with Auth0, Okta, Keycloak, PingFederate, and Microsoft Azure Active Directory. To configure SAML integration:

• Add structurizr.authentication=saml to your structurizr.properties file.
• The structurizr.url property in the structurizr.properties file should be set to the URL where Structurizr is installed (e.g. http://localhost:8080).
• Register the Structurizr on-premises application with your Identity Provider. When doing this, you will need a “Reply URL”, which is of the form {structurizr.url}/saml/SSO (e.g. http://localhost:8080/saml/SSO).
• Add a structurizr.saml.entityId property to your structurizr.properties file, set to the SAML Entity ID that you are using to identify the Structurizr on-premises installation (configured with your Identity Provider when setting up the application/client in the previous step).
• A copy of your Identity Provider’s SAML metadata (XML format) should be saved to a file called saml-idp-metadata.xml in your Structurizr data directory.
• Map the IdP username to a SAML attribute named http://schemas.xmlsoap.org/ws/2005/05/identity/claims/emailaddress
• Map the IdP roles/groups to a SAML attribute named http://schemas.xmlsoap.org/claims/Group

If you make any changes to the SAML configuration, you will need to restart the on-premises installation.

Here are some guides that show how to integrate with different identity providers.

Auth0

Here are some basic instructions for integration with Auth0. In this example, the Structurizr on-premises installation was running at http://localhost:7080.

Step	Description

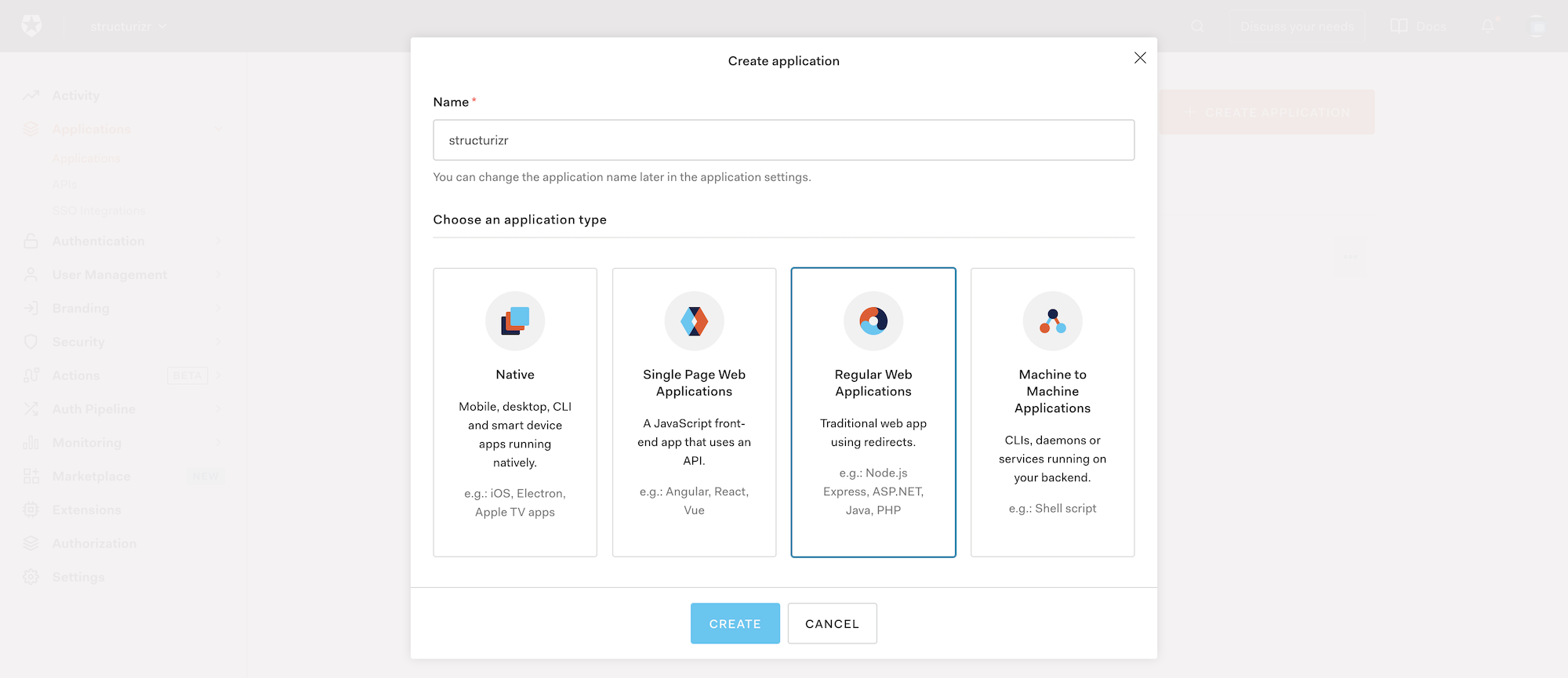

1. Register the Structurizr on-premises installation	Create an Auth0 “application” to represent the Structurizr on-premises installation. The “name” you use here should be set as the structurizr.saml.entityId property in your structurizr.properties file.

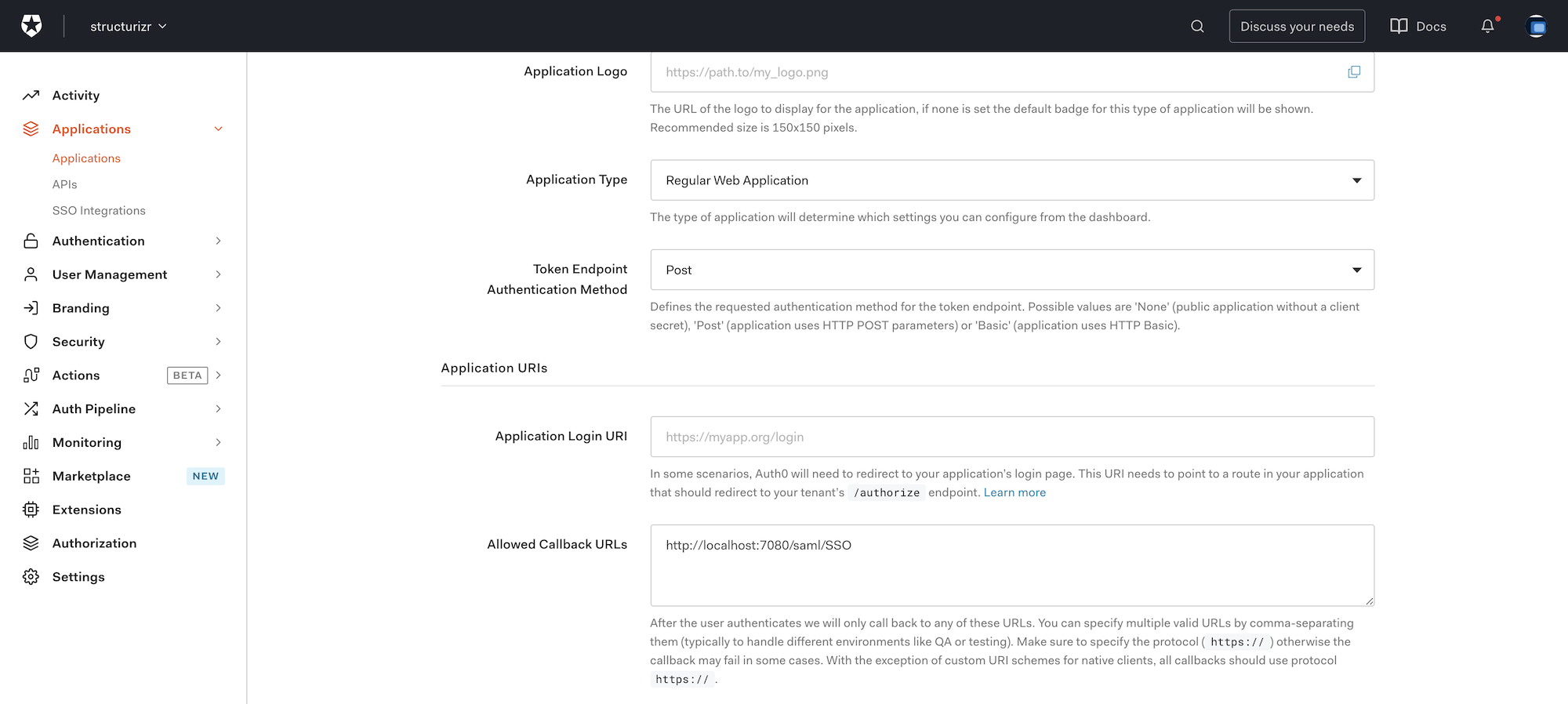

2. Set the callback URL	After creation, you will need to change the allowed callback URLs setting to http://localhost:7080/saml/SSO.

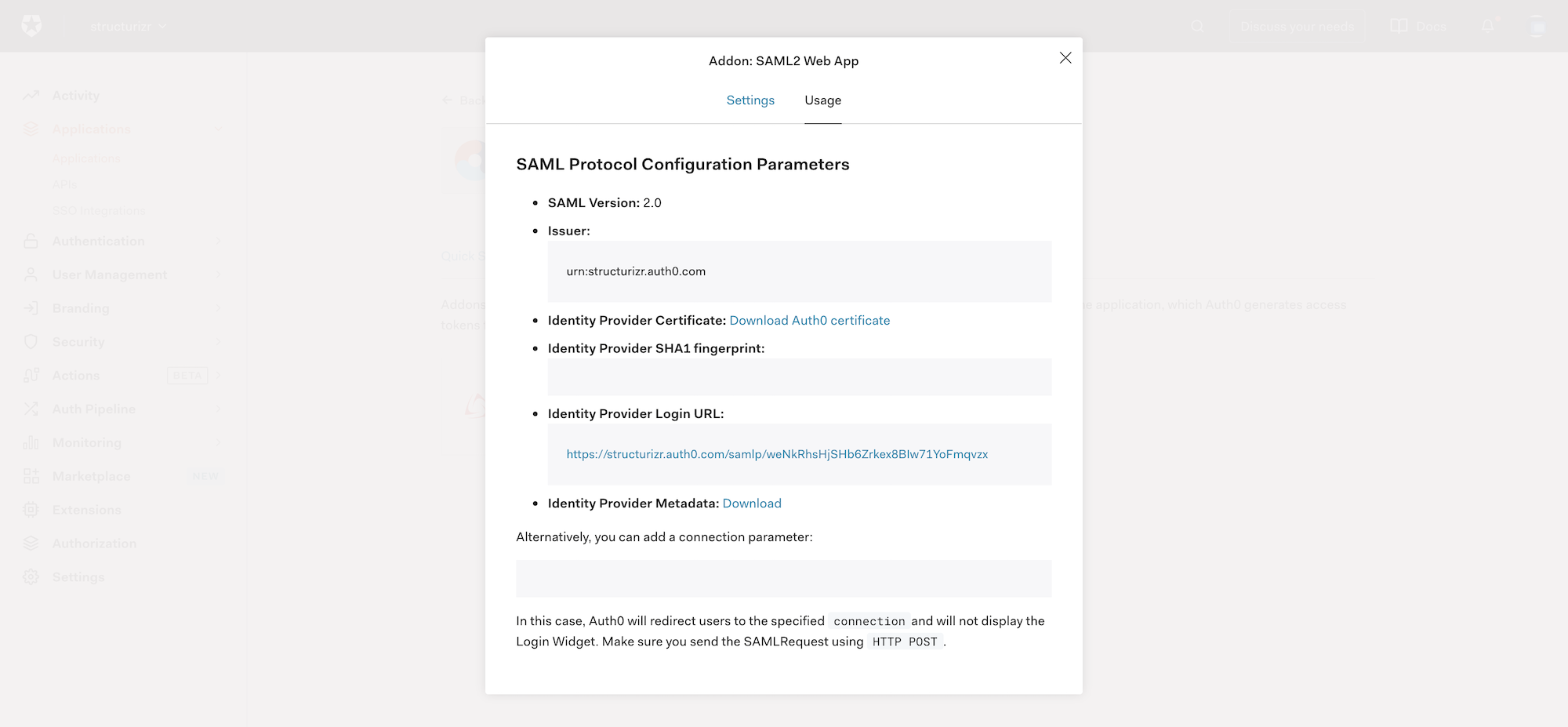

3. Download IdP metadata	Click the “SAML2 webapp” add-on for the application, and download the SAML metadata by clicking the “Identity Provider Metadata: Download” link, saving this as saml-idp-metadata.xml in your Structurizr data directory.

Azure Active Directory

Here are some basic instructions for integration with Azure Active Directory. In this example, the Structurizr on-premises installation was running at http://localhost:7080. See SSO :: 500 Error after initial authentication if your SAML integration stops working after a short period of time - you may need to change the max authentication age or force authentication.

Step	Description

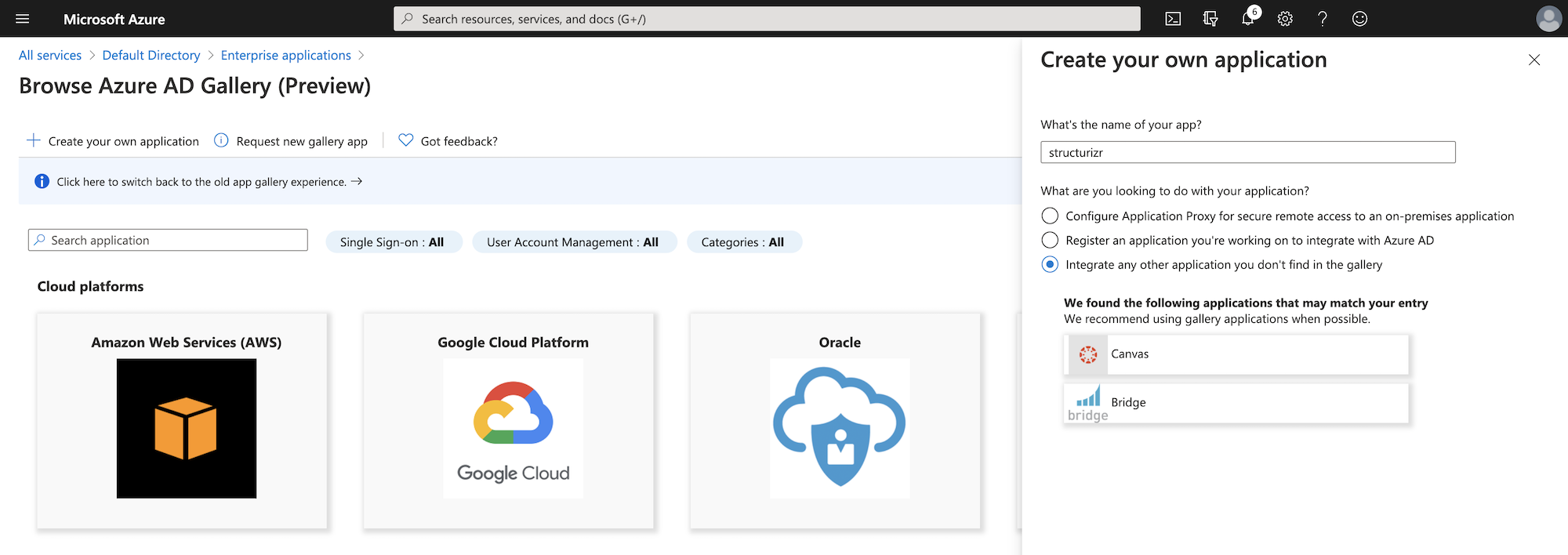

1. Register the Structurizr on-premises installation	Create an Azure “enterprise application” to represent the Structurizr on-premises installation. Choose the “Integrate with any other application you don’t find in the gallery” option.

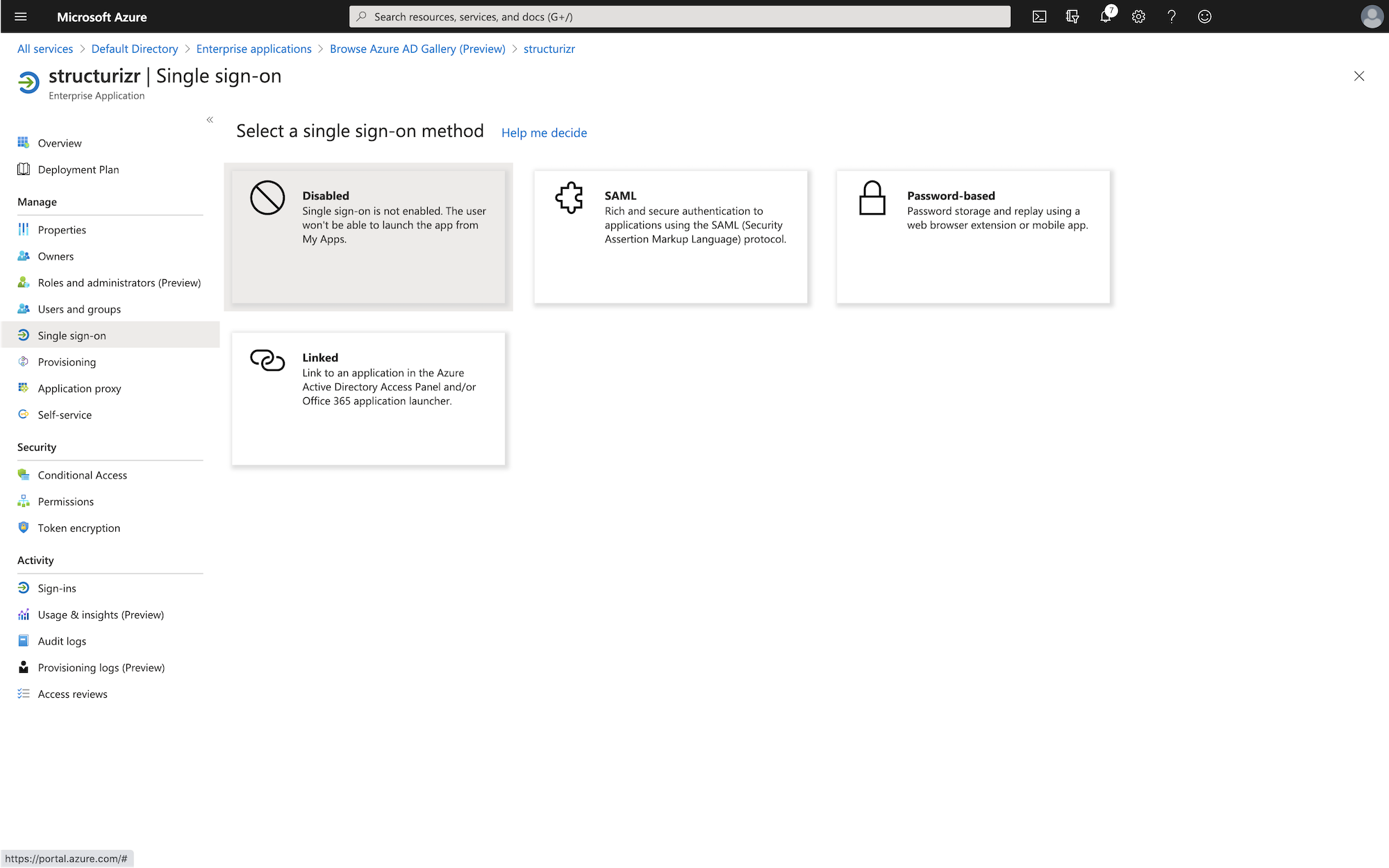

2. Change the SSO method to SAML

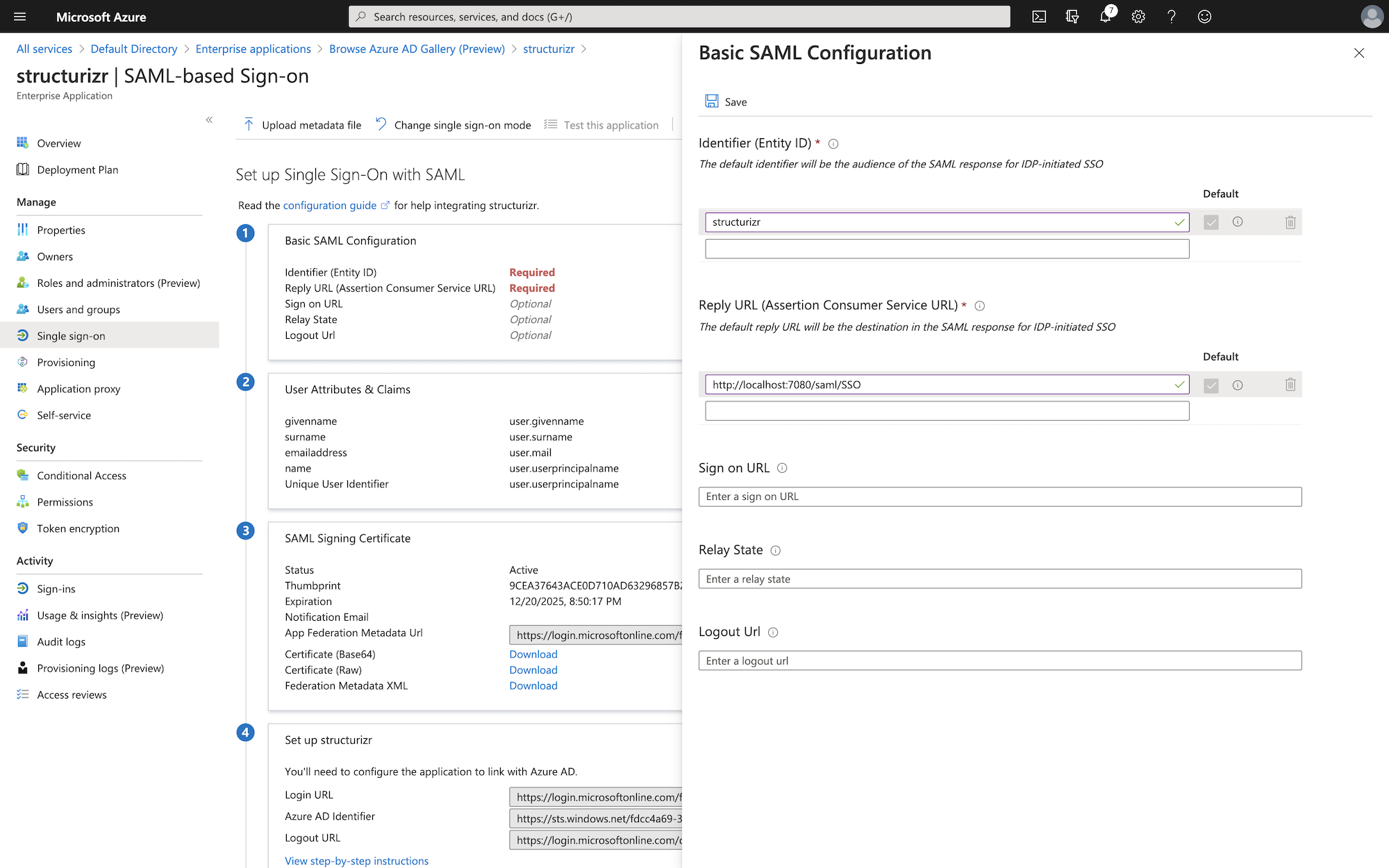

3. Configure SAML	The “identifier” you use here should be set as the structurizr.saml.entityId property in your structurizr.properties file. And the “reply URL” should be set to http://localhost:7080/saml/SSO.

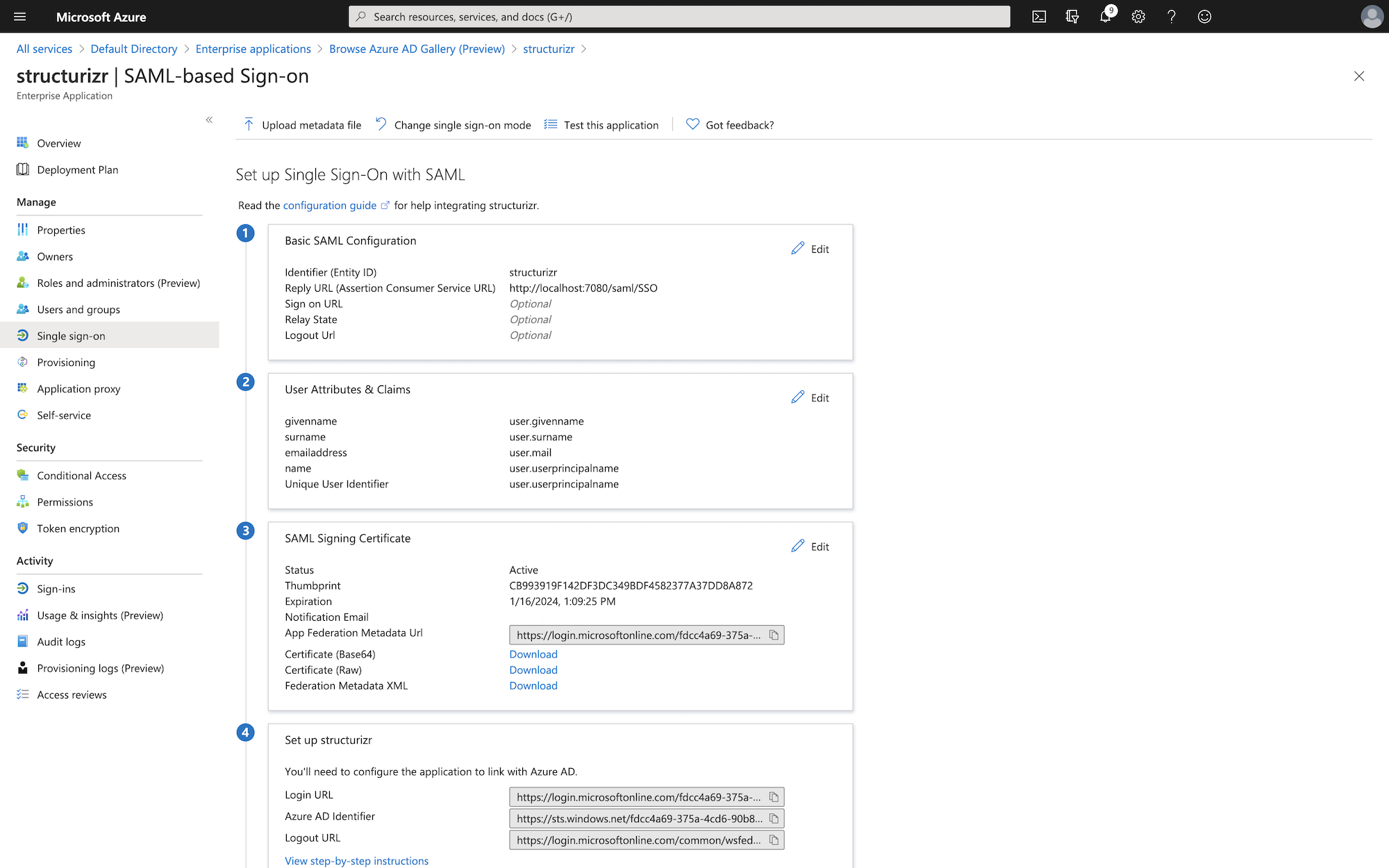

4. Download IdP metadata	Download the IdP metadata from the “App Federation Metadata URL” link, saving this as saml-idp-metadata.xml in your Structurizr data directory.

Keycloak

Here are some basic instructions for integration with Keycloak (tested on v21). In this example, the Structurizr on-premises installation was running at http://localhost:7080, and a realm already existed.

Step	Description

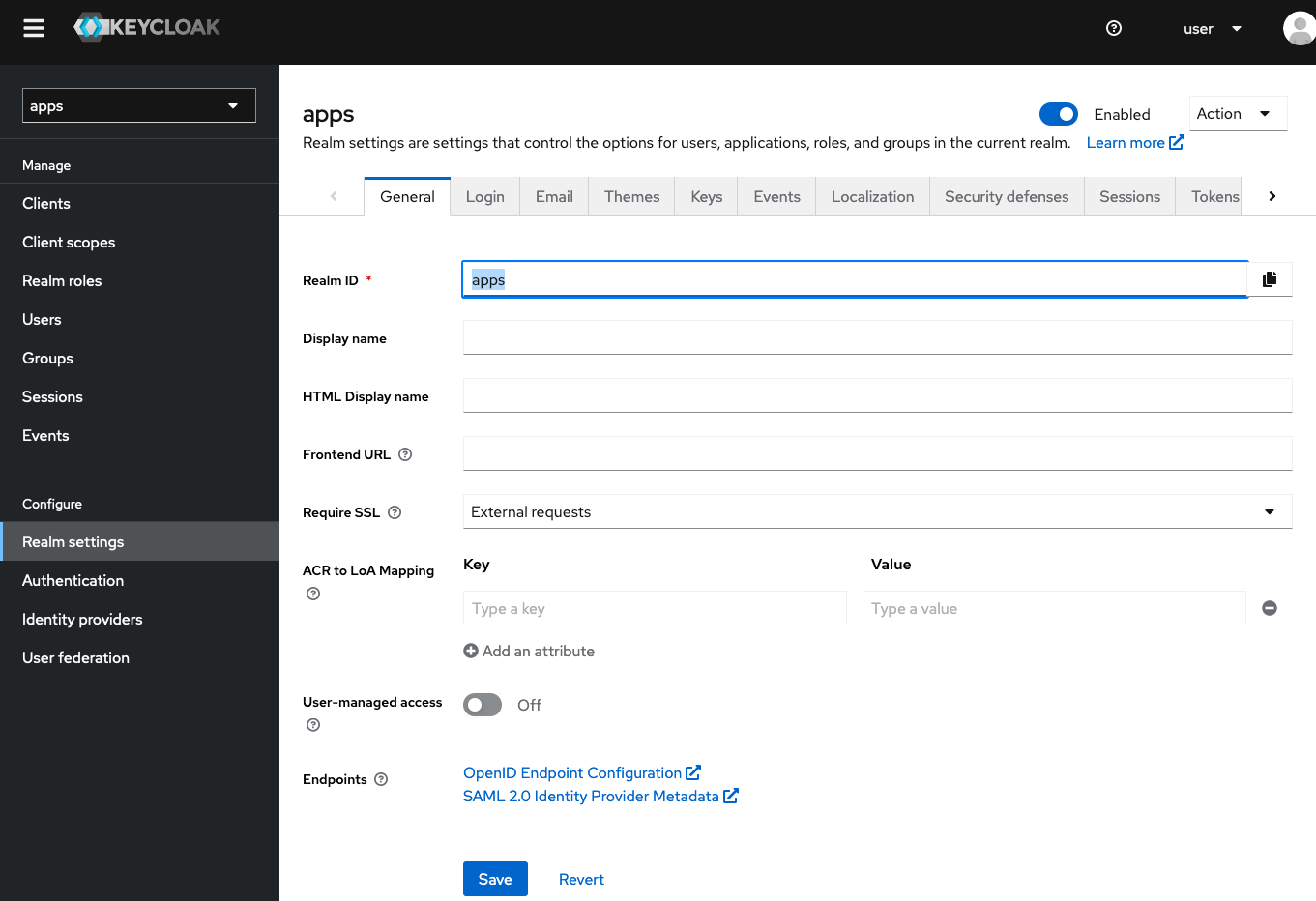

1. Download IdP metadata	Find the realm that you would like authenticate against, open “Realm settings” menu, and download the SAML metadata by clicking the “SAML 2.0 Identity Provider Metadata” link, saving this as saml-idp-metadata.xml in your Structurizr data directory.
2. Register the Structurizr on-premises installation	Create a Keycloak “client” to represent the Structurizr on-premises installation. The “client ID” you use here should be set as the structurizr.saml.entityId property in your structurizr.properties file. . On second screen you need to specify “Valid redirect URIs” to the http://localhost:7080/saml/SSO (otherwise you’ll see an “Invalid redirect URI” message).
3. Configure SAML	After creation, set “Client Signature Required” on the “Keys” tab to Off (otherwise you’ll see an “Invalid requester” message).
4. Add user property mappers	At this point, the integration should be functional, although you won’t see the username and groups/roles associated with the user. To do that, you need to add a couple of mappings for the client - one for the username, and one for the groups/roles. To do this navigate to the “Client Scopes” tab and choose “structurizr-dedicated” item. To add email mapper choose “configure new mapper”, “User Property” and fill SAML attribute name as http://schemas.xmlsoap.org/ws/2005/05/identity/claims/emailaddress and property name as “email”: To configure group mapping create new “Role list” mapper and set “Role attribute name” as http://schemas.xmlsoap.org/claims/Group. Enable “Single Role Attribute” setting, otherwise app will see only one group. Save mapper and create and assign appropriate roles to your users.
