Docker

• Docker is a deployment concept and should be modelled in your deployment model.
• Docker should not appear on container views.

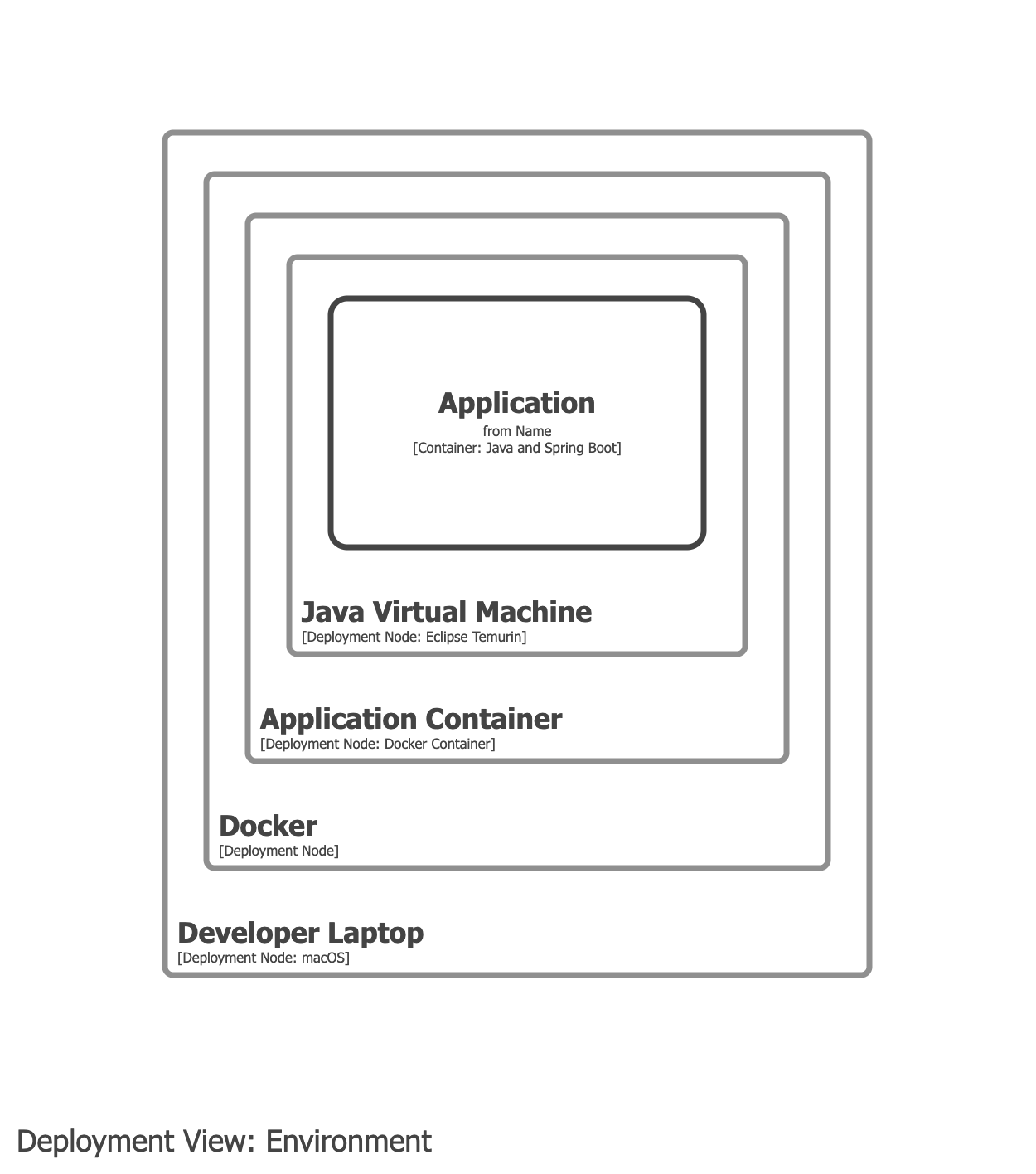

Example 1

Model the Docker runtime and the Docker container as deployment nodes.

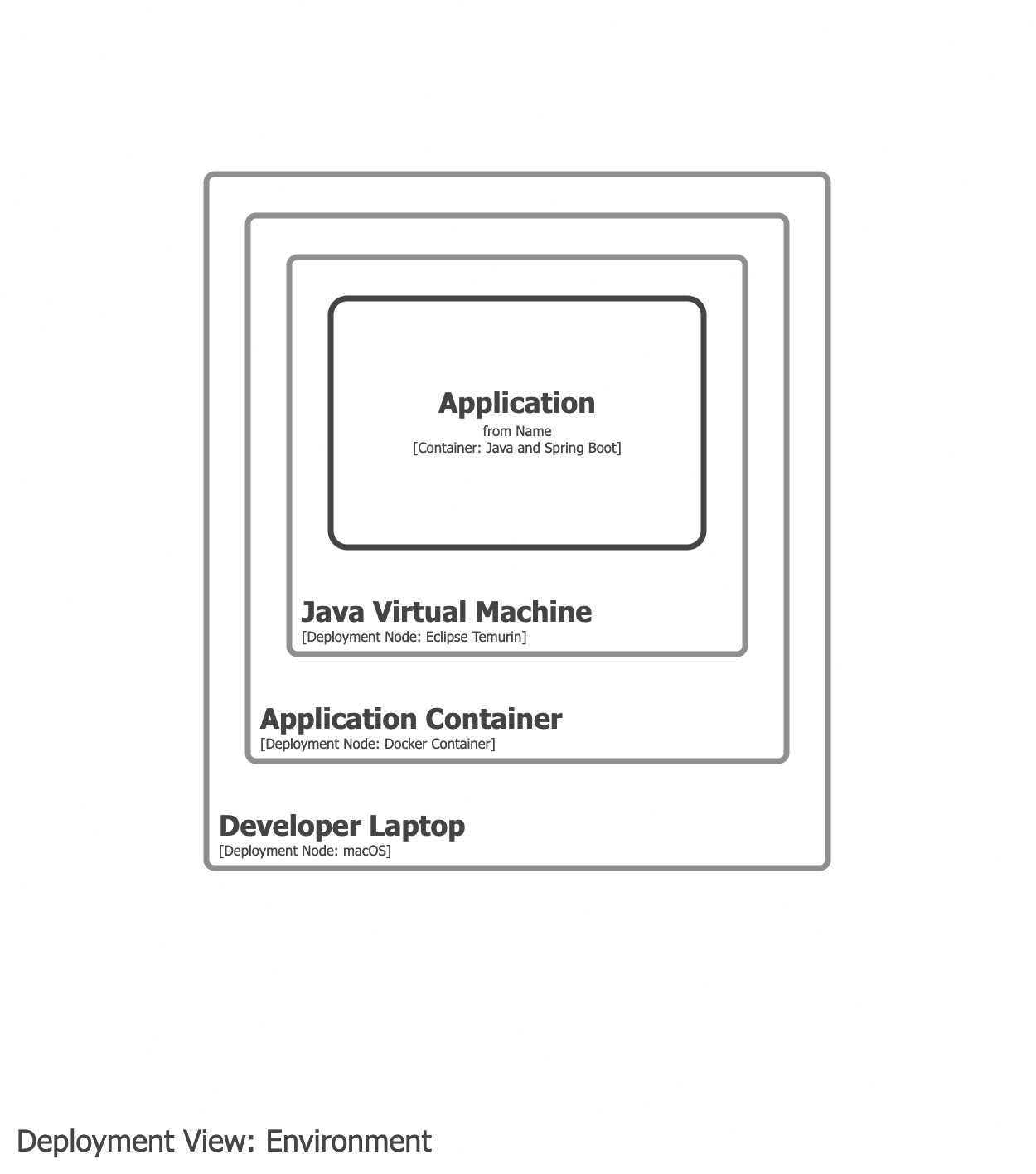

Example 2

As above, but excludes the Docker runtime.
