Amazon Web Services Lambda

Example 1

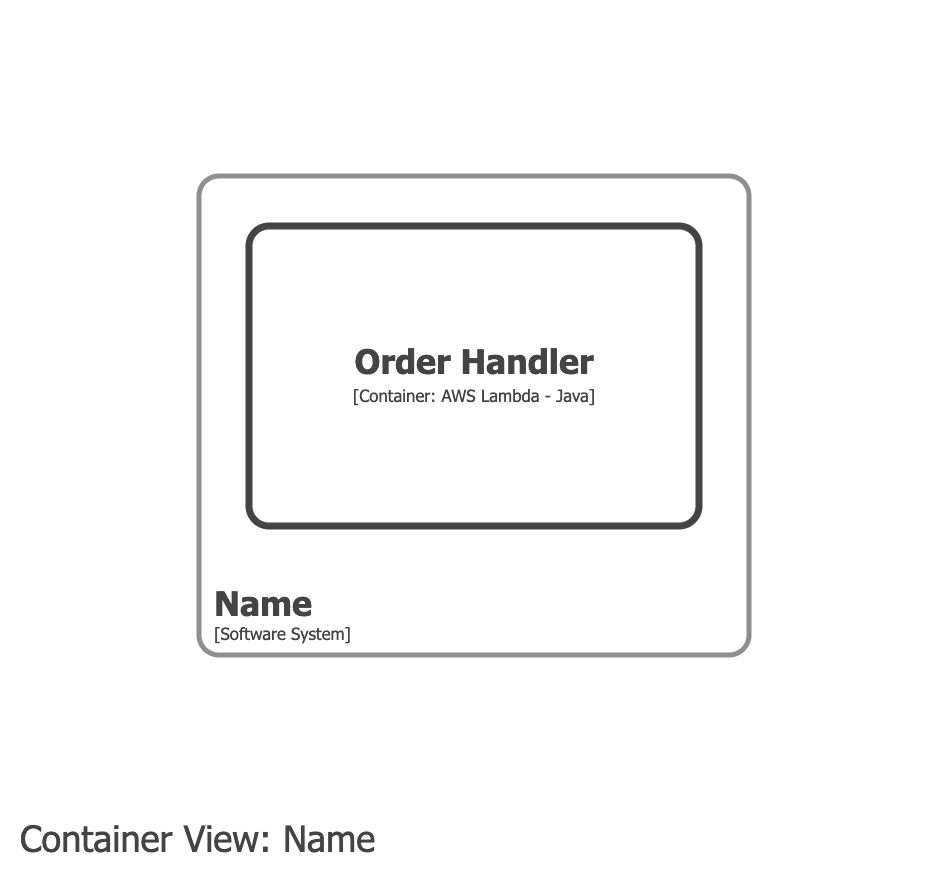

Container view

Model the handler as a container. If the handler code does not have a dependency on com.amazonaws:aws-lambda-java-core, the technology of the handler can be just Java.

Deployment view - development

In the development deployment environment, model the local services as a collection of nested deployment nodes. This example includes the Java Virtual Machine that the handler runs inside, but you can omit this for a simpler diagram.

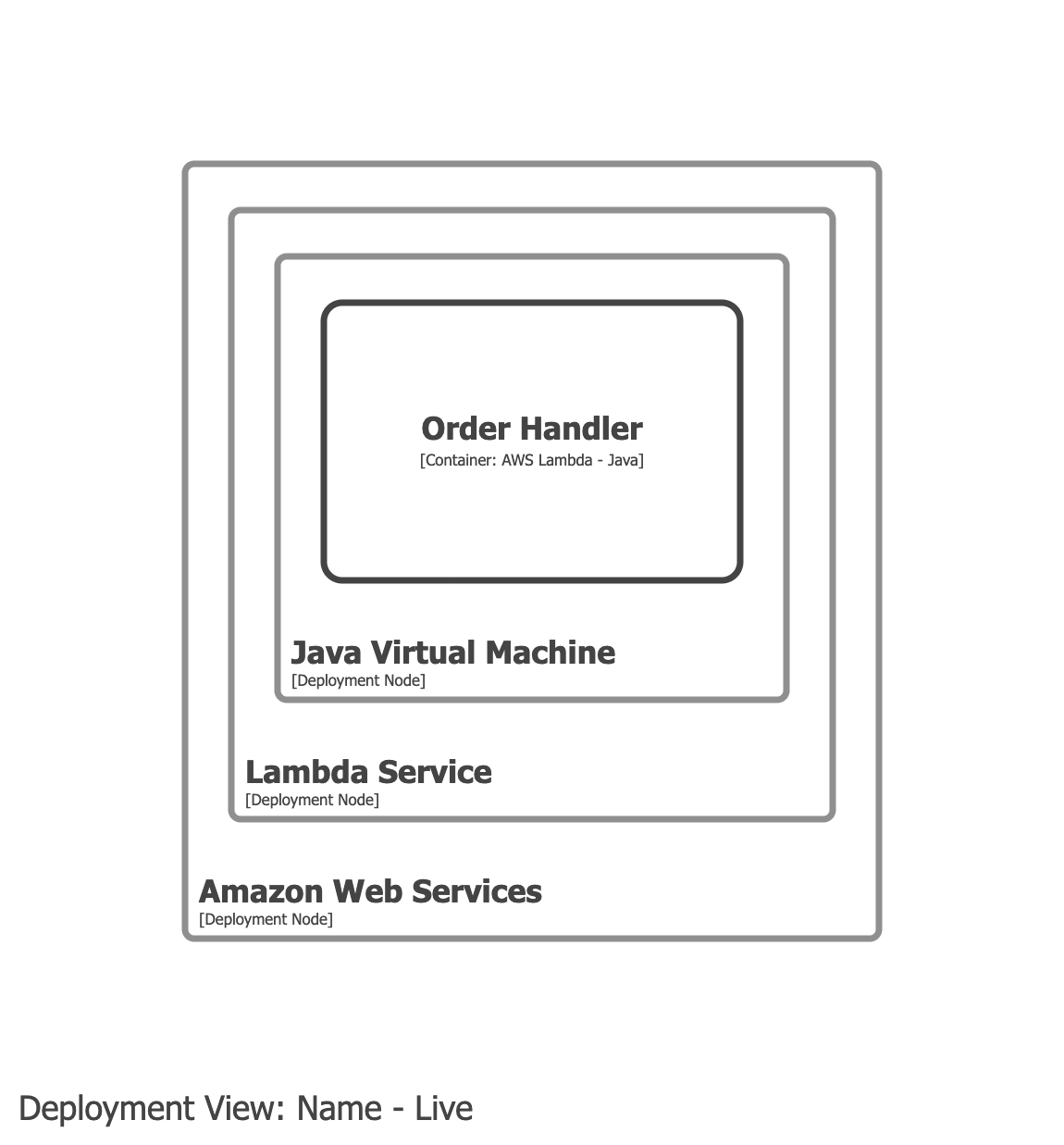

Deployment view - live

In the live deployment environment, model the AWS services as a collection of deployment nodes.
